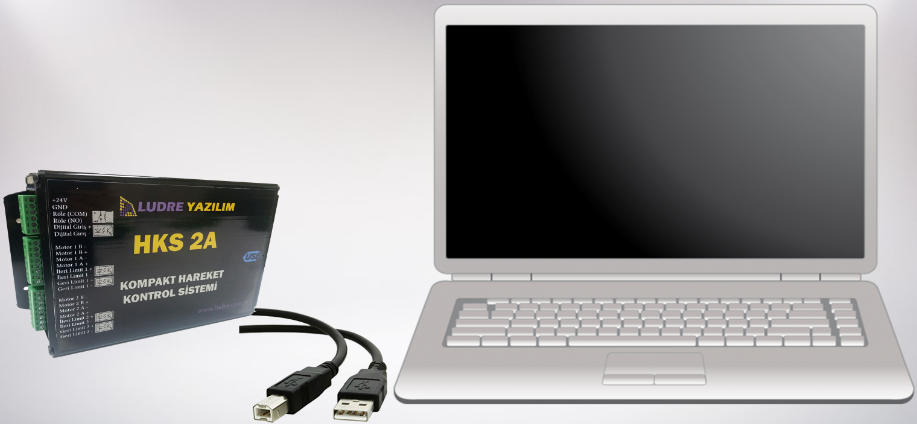

HKS 2A
2-Axis Compact Motion Control System
Computer Controlled Programmable Stepper Motor Driver


Contents;

HKS 2A
Optically Isolated Digital Input
Relay Output
USB 2.0 cable
LabVIEW Library
Software



Length 15.0 cm
Width 11.2 cm
Height 5.1cm

DESCRIPTION

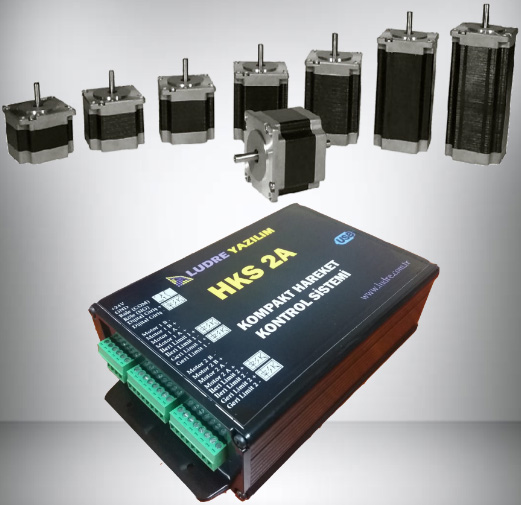

The driver, which is offered for sale as a "Compact Motion Control System", can work in harmony with all kinds of 2-axis stepper motors up to 2 Amps.
It is compatible with every operating system and can be used under all software languages.

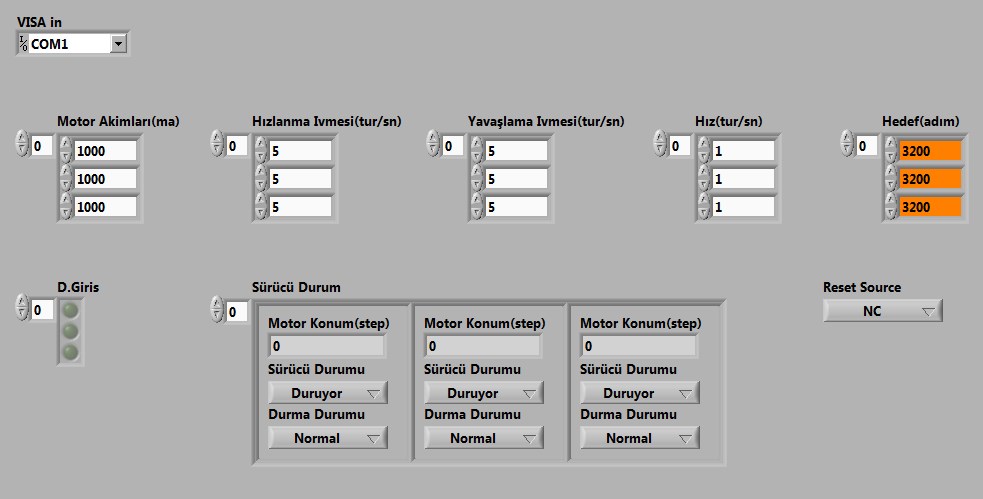

The standard communication of the HKS 2A product is USB-RS232 Modbus RTU and the sample LabVIEW library is provided to our customers free of charge.
Like many of our products, our Motion Control System is 100% domestic production.

RANGE OF APPLICATION

Motion Positioning Applications
Automation Applications
CNC Applications
3D Printer Applications
Laser Cutting Applications



General Features

Compatible with All Stepper Motors up to 2 Channels 2 Amps
Isolated USB 2.0 - RS232 Communication
Ability to be Used with All Software Languages ​​with MODBUS Protocol
Compatible with Windows / Linux / MacOS Operating Systems with FTDI Chip
Cross-Channel Synchronous Motion Feature
Hardware Optical Isolated Limit Switches
1 Optically Isolated Digital Input
1 Relay Output
User Programmable
