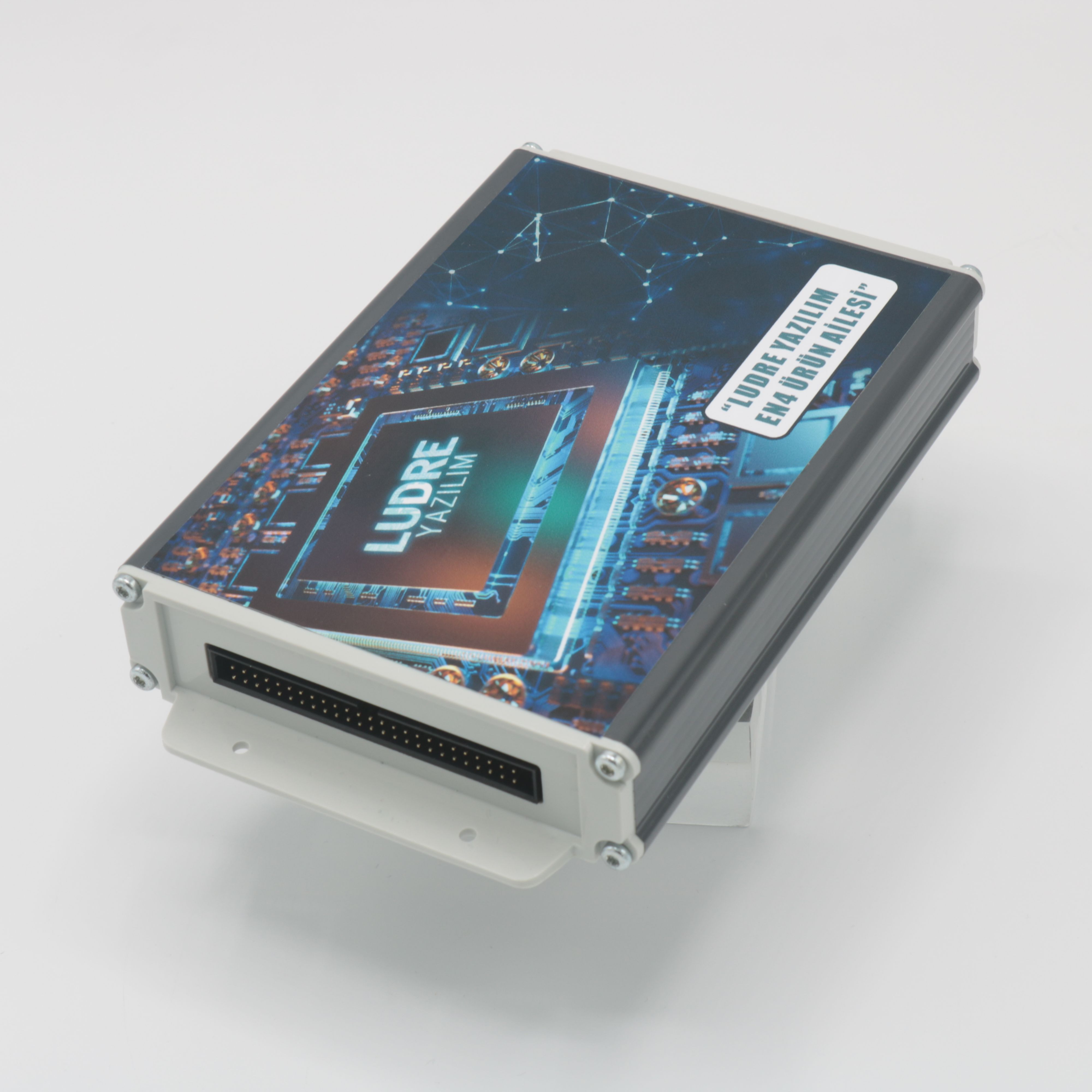

LUDRE EN4 HSDIO USB 32 CH ISOLATED INPUT/OUTPUT CARD

TECHNICAL SPECIFICATIONS
Number of Inputs: 16 ch Optical Isolated
Number of Outputs: 16 ch Solid State Relay (SSR)
Input Ranges: 5-32 VDC
Output Range: Max 60 Volt, 500 mAmp
Sampling: 2500 samples/sec
Driver Compatibility: Windows 32-64 Bit, Linux, Mac OS
Product Contents: EN4 HSDIO, USB 2.0 Cable, Product quality control and calibration report.
Dimensions: 15 cm x 11.2 cm x 2.95 cm

DESCRIPTION
Suitable for industrial automation and control applications with 32 isolated inputs and outputs.

RANGE OF APPLICATION
Automation, Control, Stepper motor control, PID applications, Digital control, Robot applications.

PRODUCT DRIVER
USB plug and play feature.
https://www.ftdichip.com/Drivers/D2XX.htm

DOCUMENTS
https://www.ludre.com.tr/ludre-en4-hsdio/54
https://www.ludre.com.tr/Uploads/Dokumanlar/ludre-en4-hsdio-channels11-ocak-2023-carsamba.pdf



LUDRE EN4 HSDIO 32 KANAL İZOLE GİRİŞ-ÇIKIŞ KARTI
TEKNİK ÖZELLİKLERİ

Giriş Sayısı: 16 Kanal Optik İzole
Çıkış Sayısı: 16 Kanal Solid State Relay (SSR)
Giriş Aralıkları: 5-32 VDC
Çıkış Aralıkları: Max 60 Volt, 500 mAmp
Örnekleme: 2500 örnek/s
Sürücü Uyumluluğu: Windows 32-64 Bit, Linux, Mac OS
Ürün İçeriği: EN4 HSDIO, USB 2.0 Kablo, Ürün kalite kontrol ve kalibrasyon raporu.
Boyutlar: 15 cm x 11.2 cm x 2.95 cm

HAKKINDA
32 izole giriş ve çıkış ile endüstriyel otomasyon ve kontrol uygulamalarına uygundur.

UYGULAMA ALANLARI
Otomasyon, Kontrol, Step motor kontrolü, PID uygulamaları, Dijital kontrol, Robot uygulamaları.

ÜRÜN SÜRÜCÜSÜ
USB tak çalıştır özelliği.
https://www.ftdichip.com/Drivers/D2XX.htm

BELGELER
https://www.ludre.com.tr/ludre-en4-hsdio/54
https://www.ludre.com.tr/Uploads/Dokumanlar/ludre-en4-hsdio-channels11-ocak-2023-carsamba.pdf
